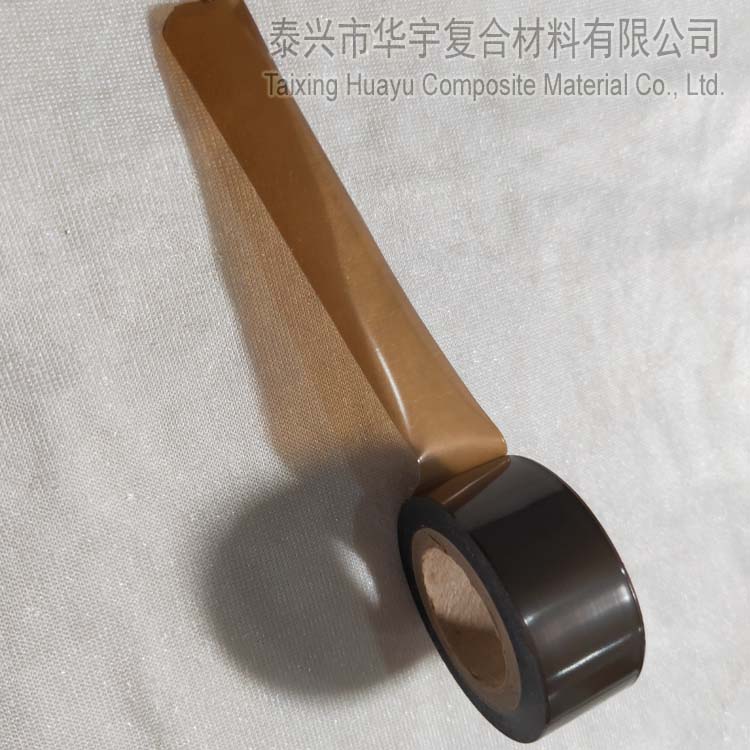

PTFE Skived Film Adhesive Tape
发布时间 : 2019-06-11 浏览次数 : 次PTFE Skived film adhesive tape is a transparent pressure tape using a skived and tensilized PTFE film that is coated with a high temperature silicone adhesive. The tensilized film provides higher tensile strength, lower elongation and higher dielectric strength than a regular skived film.
Application:
PTFE Skived Film adhesive Tape is used primarily in electrical applications such as coil wraps coil and separators, transformers, slot liner and harness wrapping where good insulation and heat resistance are needed.
Technical Data:
| Backing Material | Skived PTFE Film | Tensile Strength | 5.4kg/cm |
| Backing Thickness |
0.002in. (0.05mm) | Elongation | 100% |
| Adhesive Thickness | Dielectric Strength | 10 KV | |
| Adhesive Material | Pressure sensitive silicone | Max. Operating Temp. | 500F(260 °C) |
| Color | Grey | Length | 10-36yards |
