PTFE Seamless Sealing Belt

发布时间 : 2018-09-07  浏览次数 :
PTFE Seamless Sealing Belt is quite narrow in width. Taking consideration of lifetime, it is often produced by the special equipment and there is no joint. In this way, it can easily resolve the problems and the joint cannot break down even under the high-strength working environment. It can work continuously under the temperature from -140℃ to 320℃.

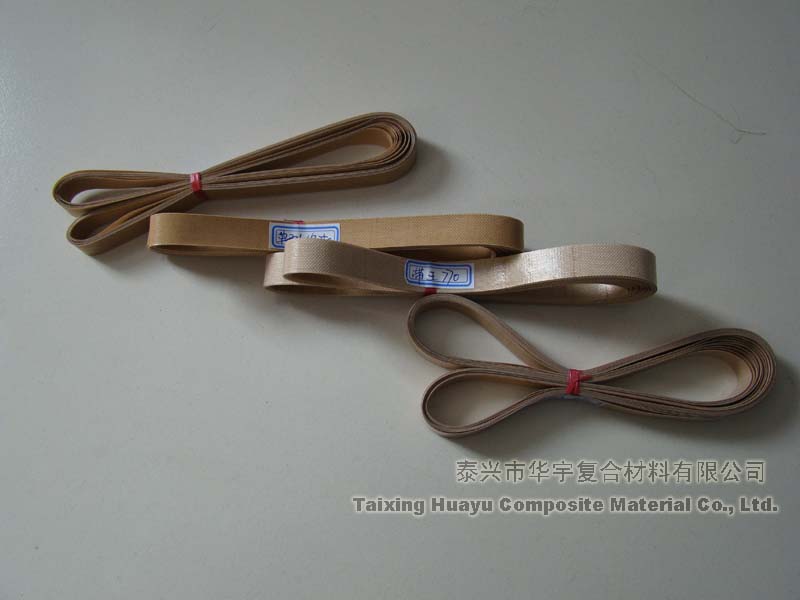

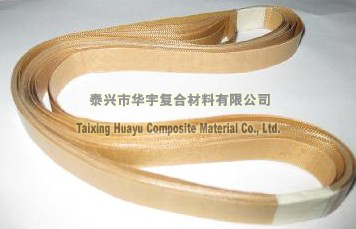

PTFE Seamless Sealing Belt(图1)  PTFE Seamless Sealing Belt(图2)

Specifications:
Item NO. Girth(mm) Thickness
HY-SB750 750 0.18mm/0.20mm/0.24mm
HY-SB770 770 0.18mm/0.20mm/0.24mm
HY-SB810 810 0.18mm/0.20mm/0.24mm
HY-SB1000 1000 0.18mm/0.20mm/0.24mm
HY-SB1010 1010 0.18mm/0.20mm/0.24mm
HY-SB1020 1020 0.18mm/0.20mm/0.24mm
HY-SB1120 1120 0.18mm/0.20mm/0.24mm
HY-SB1150 1150 0.18mm/0.20mm/0.24mm
HY-SB1710 1170 0.18mm/0.20mm/0.24mm
HY-SB1210 1210  0.18mm/0.20mm/0.24mm
HY-SB1366 1366  0.18mm/0.20mm/0.24mm
HY-SB1350 1350  0.18mm/0.20mm/0.24mm
HY-SB1710 1710 0.18mm/0.20mm/0.24mm

With the great improvement of our technology, we not only produce the one with two smooth surfaces, but also produce the one with one smooth surface and the other one tough surface. PTFE Seamless Sealing Belt has been widely used in all kinds of sealing machine.
