Silicone rubber coated fiberglass fabric

发布时间 : 2022-04-07  浏览次数 :

Silicone rubber coated fiberglass fabric belongs to silicone fabric. Compared with the silicone calendared fiberglass fabric, it is often quite thin in thickness such as 0.18mm,0.25mm, 0.35mm and 0.45mm. It is composed of good-qualified fiberglass coated with silicone rubber on both sides or either side.



Silicone rubber coated fiberglass fabric has such properties as high temperature and weather resistance. Human beings often make use of it as a best electric insulator, as it can withstand dielectric constant 33.2, break down voltage between 2050KV/m. In the meantime, it is much soft and tough so that it can be easily covered on any pipeline to prevent the bad working environment.



Often, it is most suitable to be used as the insulation cloth and sleeves. Also, it can be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material. You may find that it has been used as shrink oven, fireproof curtain, isolated liner.



Specifications:

Item   NO.

Thickness

(mm)

Breaking   Strength

(n/50mm)

Bursting   Strength

(Mpa)

Combustible

Width

(mm)

HY-S018

0.18

1500/1200

2.0

≤25%

0--1500

HY-S025

0.25

1800/1500

2.1

≤25%

0—1500

HY-S040

0.40

2000/1600

2.2

≤25%

0—1500

HY-S050

0.50

2200/1800

2.3

≤25%

0—1500

HY-S060

0.60

2400/2200

2.4

≤25%

0—1500

HY-S070

0.70

2500/2300

2.4

≤25%

0—1500

HY-S080

0.80

2600/2400

2.5

≤25%

0—1500

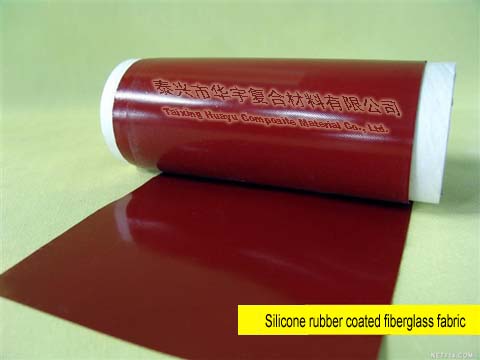

Silicone rubber coated fiberglass fabric(图1)

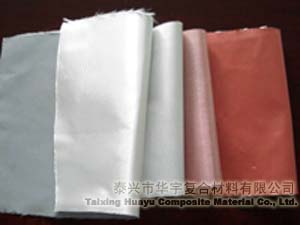

Silicone rubber coated fiberglass fabric(图2)

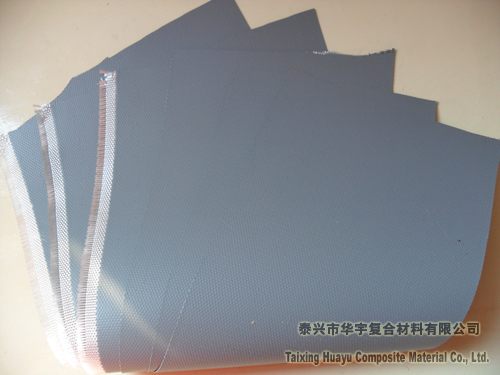

Silicone rubber coated fiberglass fabric(图3)


Generally, the colors of silicone rubber coated fiberglass fabric are gray, white, red and black. Meanwhile, it can be cut into any size as every customer’s requirement.
