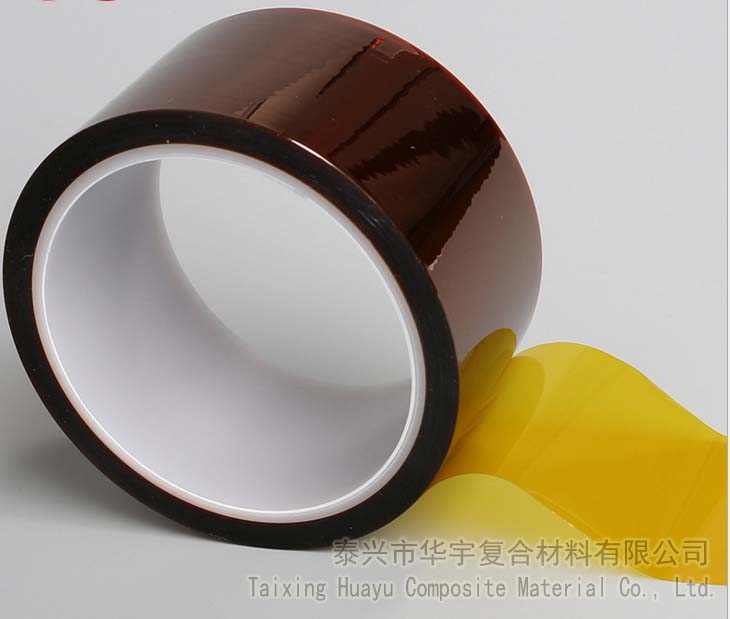

Polyimide Film Adhesive Tape
发布时间 : 2021-10-19 浏览次数 : 次Polyimide Film Adhesive Tape is a composite high temperature resistant tape made of polyimide film as the base material and coated with high-performance silicone pressure-sensitive adhesive on one side. According to the release film, there are two types of materials that are single-sided fluoroplastic release material composite or non-composite. Polyimide tape has the advantages of high temperature resistance, high tensile strength, good chemical resistance, no residual glue, and environmental protection. It is widely used in the electronics and electrical industries and circuit board manufacturing industries.
Features:
◆High electrical strength
◆No peeling, no residual glue
◆Can withstand temperatures of 500F (260 degrees) or higher
◆Class H insulation
Specification Table:
| ITEM NO | HY2560 | HY5058 | HY7511 | HY1216 | HY2565AS |
| Color | Amber | Amber | Amber | Amber | Amber |
Base cloth thickness(mm) | 0.025 | 0.050 | 0.075 | 0.125 | 0.025 |
| Total Thickness(mm) | 0.060 | 0.085 | 0.11 | 0.16 | 0.065 |
| Heat Resistant (℃) | 250 | 250 | 250 | 250 | 250 |
| Electric Strength（Volts） | 5000 | 7000 | 9000 | 12000 | 5000 |
|
Antistatic Coefficient （Ω） | Ten to the 8th power | ||||
| Length(m) | 33m | ||||
Application：
◆Surface mount, used for the protection of gold fingers in wave soldering and reflow soldering.
◆Used for insulation and bonding of electrical switches, motors, transformers, relays, wires, coils, capacitors and lithium batteries in Class H.
◆Antistatic polyimide tape and double-sided polyimide tape can be used in some special fields.
