FEP TAPE

发布时间 : 2019-06-17  浏览次数 :

FEP tape is a pressure sensitive tape made of FEP film with a bondable upper surface that is coated a high temperature silicone adhesive. The FEP film is optically clear and offers excellent electrical properties and  chemical resistance.
FEP tape is used primarily in electrical applications as a high temperature cable splicing tape product. The bondable surface provides adhesion to itself when wrapped on a cable construction.

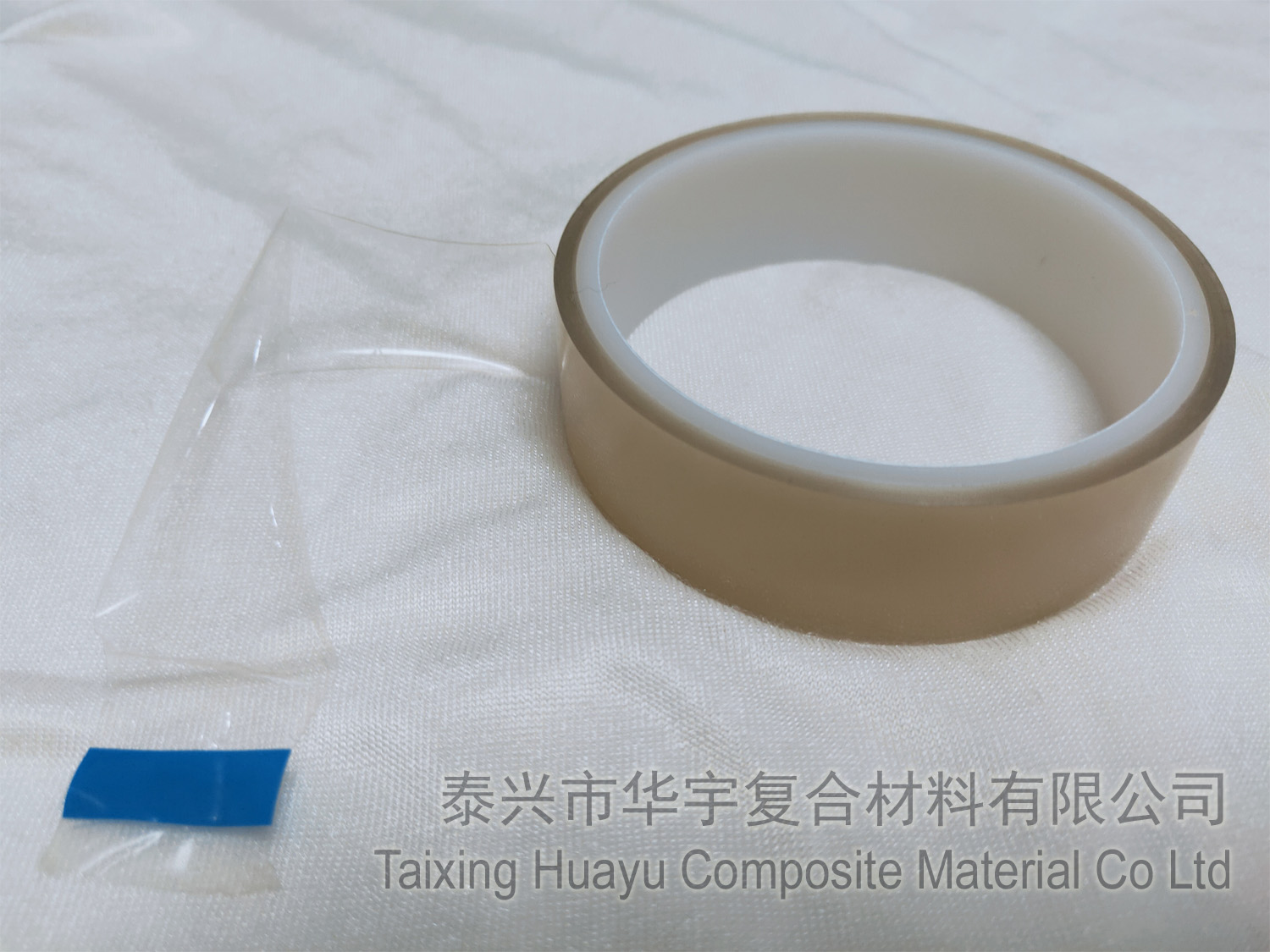

FEP TAPE(图1)
 Technical Data:

Backing Material FEP Film Tensile Strength 1.07kg/cm
Backing Thickness 0.002in.
(0.05mm)
Elongation

300%
Adhesive Thickness 0.0015in.
(0.04mm)
Dielectric Strength 8.5KV
Adhesive Material Silicone Max. Operating Temp.

400F

(204.44 °C)

Color Transparent Length 10-36yards
